gosund电小酷CP5单片机模组引脚定义

zxlch

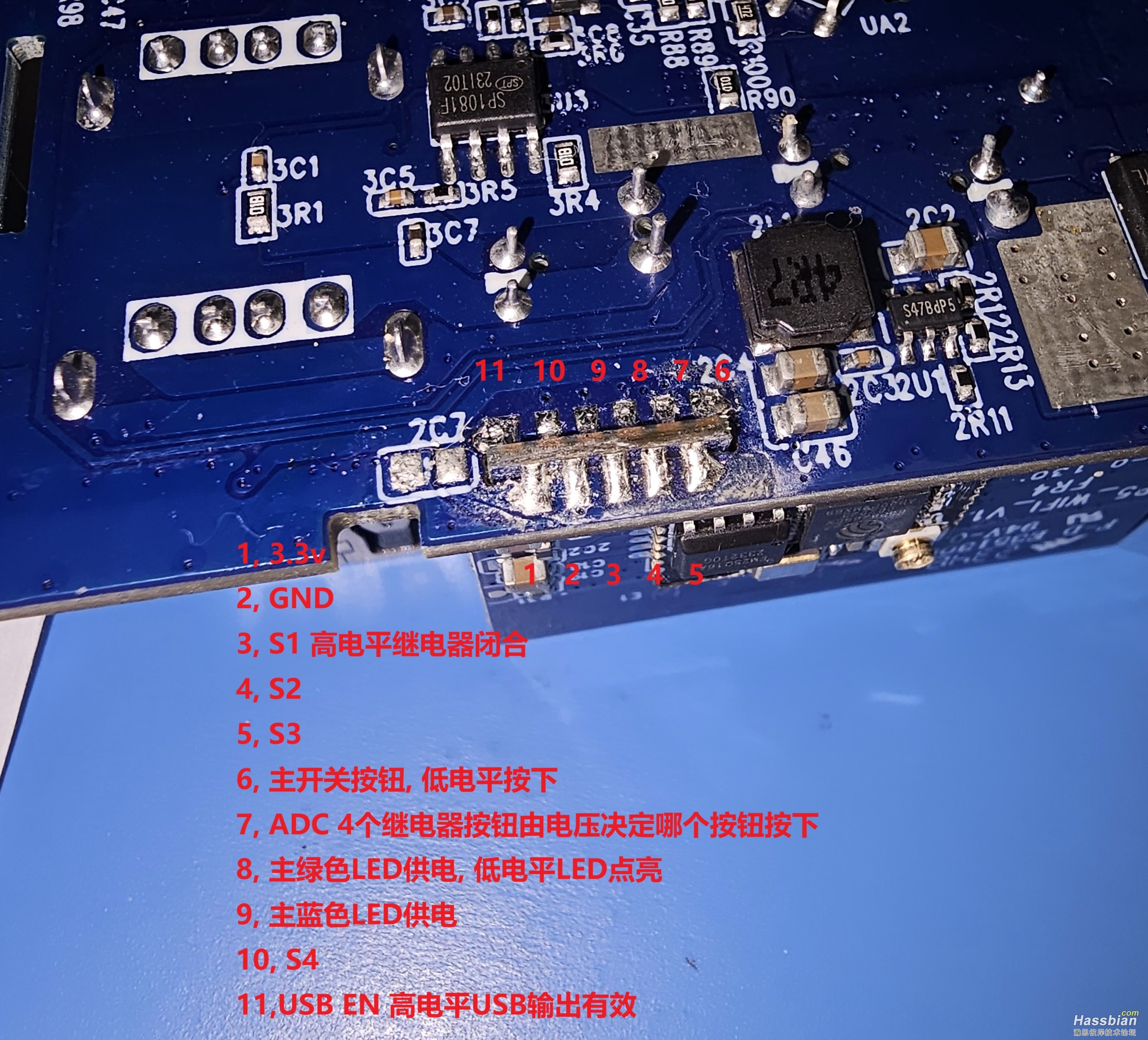

如图, 原装的固件经常掉线, CP5 PRO就没这个问题, 现在准备刷一个新固件去解决这个问题, 所以测量了模组的每个引脚定义, 发出来分享

zxlch

GPIO:
1, 3V3
2, GND
3, GPIO14
4, GPIO12
5, GPIO15
6, GPIO13
7, ADC
8, GPIO0
9, GPIO2
10, GPIO4
11, GPIO5

ADC电压:
S1按键按下, 0.7175v
S2按键按下, 0.4523v
S3按键按下, 0.2096v
S4按键按下. 0.8341v
没有按键按下, 3.3v

zxlch

gpio: GPIO[13]| InputEn: 1| OutputEn: 0| OpenDrain: 0| Pullup: 1| Pulldown: 0| Intr:3
gpio: GPIO[2]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
gpio: GPIO[4]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
gpio: GPIO[5]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
gpio: GPIO[12]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
gpio: GPIO[14]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
gpio: GPIO[15]| InputEn: 0| OutputEn: 1| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0

whxciotw

好东西，谢谢。

whxciotw

cp5 pro 的引脚定义，也是一样吗？

jjcs

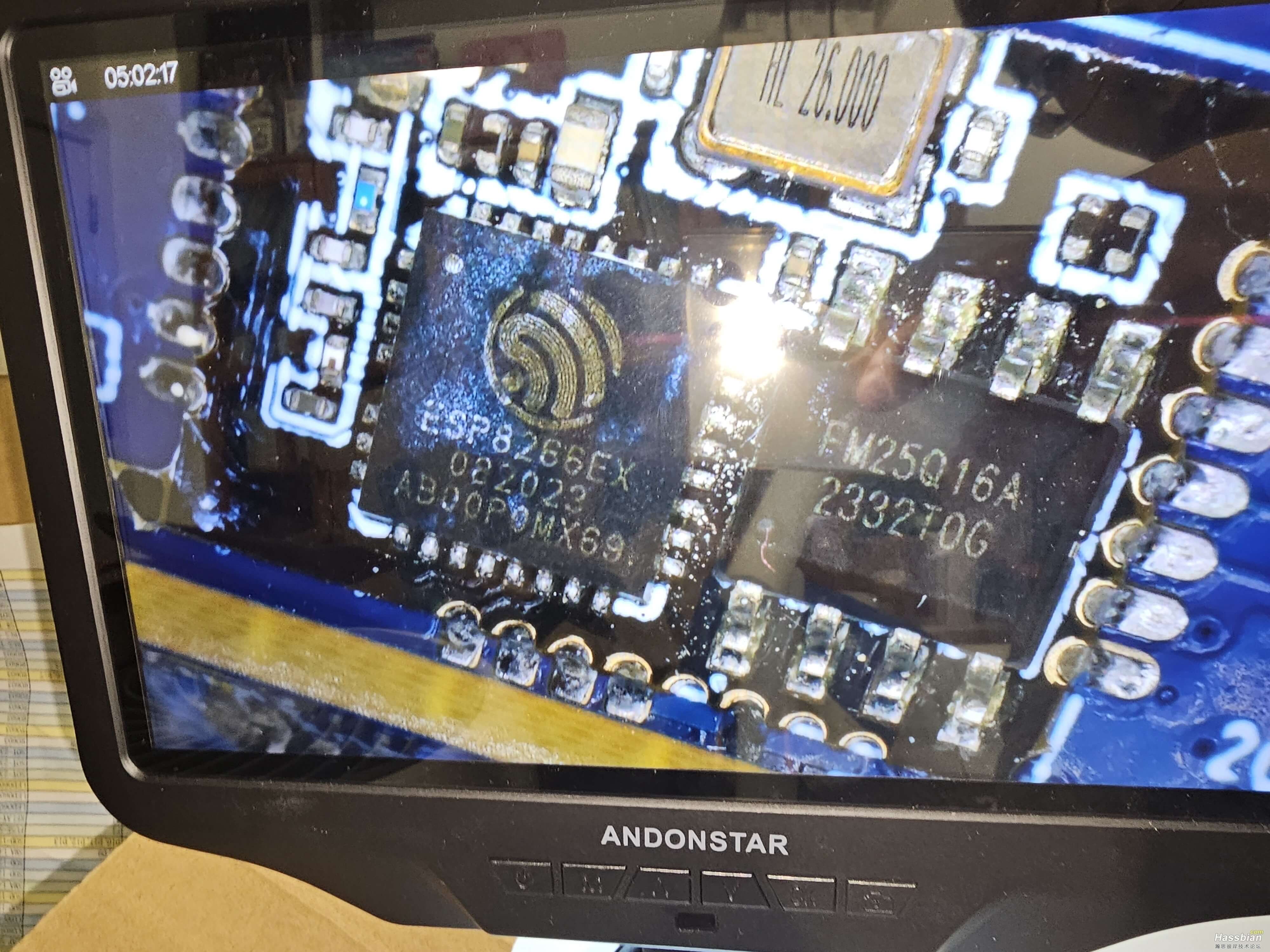

CP5 PRO用的是esp32，自然没问题，8266信号问题老生常谈

zxlch

jjcs 发表于 2025-2-10 14:21
CP5 PRO用的是esp32，自然没问题，8266信号问题老生常谈

之前为了便宜买的CP5, 哪里知道问题这么多.

zxlch

whxciotw 发表于 2025-2-10 11:27
cp5 pro 的引脚定义，也是一样吗？

不一样, CP5连反馈电路都没有, CP5 PRO的数据多太多了

zxlch

esphome:
  name: gosund_cp5
  platform: ESP8266
  board: esp_wroom_02

wifi:
  ssid: "##########"
  password: "##############"
  on_connect:
    - switch.turn_off: blue_led
    - switch.turn_on: green_led
  on_disconnect:
    - switch.turn_off: green_led
    - switch.turn_on: blue_led

web_server:
  port: 80

api:

ota:
  - platform: esphome

switch:
  - platform: gpio
    pin: GPIO2
    id: green_led
    inverted: true
    restore_mode: RESTORE_DEFAULT_OFF
  - platform: gpio
    pin: GPIO0
    id: blue_led
    inverted: true
    restore_mode: RESTORE_DEFAULT_ON
  - platform: gpio
    pin: GPIO14
    id: state_s1
    name: "S1 State"
    restore_mode: RESTORE_DEFAULT_OFF
  - platform: gpio
    pin: GPIO12
    id: state_s2
    name: "S2 State"
    restore_mode: RESTORE_DEFAULT_OFF
  - platform: gpio
    pin: GPIO15
    id: state_s3
    name: "S3 State"
    restore_mode: RESTORE_DEFAULT_OFF
  - platform: gpio
    pin: GPIO4
    id: state_s4
    name: "S4 State"
    restore_mode: RESTORE_DEFAULT_OFF
  - platform: gpio
    pin: GPIO5
    id: state_usb
    name: "USB State"
    restore_mode: RESTORE_DEFAULT_OFF

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: true
    id: main_button
    on_press:
      then:
        - switch.toggle: state_usb

sensor:
  - platform: adc
    pin: A0
    id: adc_input
    update_interval: 50ms
    filters:
      - calibrate_linear:
          - 0.0 -> 0.0
          - 3.3 -> 3.3
    on_value_range:
      - above: 0.70
        below: 0.79
        then:
          - switch.toggle: state_s1
      - above: 0.40
        below: 0.49
        then:
          - switch.toggle: state_s2
      - above: 0.20
        below: 0.29
        then:
          - switch.toggle: state_s3
      - above: 0.80
        below: 0.89
        then:
          - switch.toggle: state_s4

复制代码

这是一份ESPHOME的模板

jjcs

zxlch 发表于 2025-2-10 17:32
之前为了便宜买的CP5, 哪里知道问题这么多.

酷客的东西只能说凑合，固件做的稀烂，硬件设计只能说过得去，如果用标准模组应该没有信号问题，
